MIL-W-81822
MIL-W-81822/6 MIL線纜
TAGS:
應用與描述：
單芯擠壓薄壁聚四氟乙烯(PTFE) 絕緣 MIL-W-81822/6 電纜用于計算機背板，此類電線是實心應用在背板的線圈上使用。

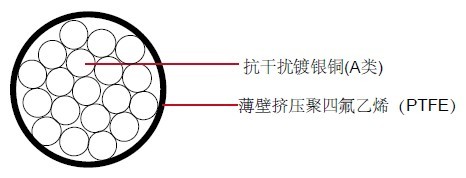

結構：
導體：
A類: 抗干擾鍍銀銅
B類: 鍍銀無氧銅
C類: 鍍銀高強度銅合金
絕緣：薄壁擠壓聚四氟乙烯(PTFE)
特性：
額定溫度：200ºC
額定電壓：300 volts
SAE AS81822/6
顏色編碼：MIIL-STD-104
尺寸和重量：
| AWG | 導體絞合 | 導體直徑 |
絕緣直徑 （*?。?/th> |
絕緣直徑 （*大） |
*大電阻 @ 20°C OHMS/ MFT | 重量 LBS/MFT | |||
|---|---|---|---|---|---|---|---|---|---|
| IN | MM | IN | MM | IN | MM | ||||
| Type A | |||||||||
| 20 | Solid | 0.0320 | 0.813 | 0.0540 | 1.370 | 0.0580 | 1.470 | 10.40 | 5.0 |
| 22 | Solid | 0.0253 | 0.643 | 0.0460 | 1.170 | 0.050 | 1.270 | 16.80 | 3.4 |
| 24 | Solid | 0.0201 | 0.511 | 0.0400 | 1.020 | 0.0440 | 1.120 | 26.50 | 2.4 |
| 26 | Solid | 0.0159 | 0.40 | 0.0290 | 0.737 | 0.0330 | 0.838 | 42.70 | 1.4 |
| 28 | Solid | 0.0126 | 0.320 | 0.0240 | 0.610 | 0.0280 | 0.711 | 68.00 | 1.0 |
| 30 | Solid | 0.0100 | 0.254 | 0.0210 | 0.533 | 0.0270 | 0.610 | 108.00 | 0.7 |
| Type B | |||||||||
| 20 | Solid | 0.0320 | 0.813 | 0.0540 | 1.370 | 0.0580 | 1.470 | 10.40 | 5.0 |
| 22 | Solid | 0.0253 | 0.643 | 0.0460 | 1.170 | 0.0500 | 1.270 | 16.80 | 3.4 |
| 24 | Solid | 0.0201 | 0.511 | 0.0400 | 1.020 | 0.0440 | 1.120 | 26.50 | 2.4 |
| 26 | Solid | 0.0159 | 0.404 | 0.0290 | 0.737 | 0.0330 | 0.838 | 42.70 | 1.4 |
| 28 | Solid | 0.0126 | 0.320 | 0.0240 | 0.610 | 0.0280 | 0.711 | 68.00 | 1.0 |
| 30 | Solid | 0.0100 | 0.254 | 0.0210 | 0.533 | 0.0240 | 0.610 | 108.00 | 0.7 |
| Type C | |||||||||
| 20 | Solid | 0.0320 | 0.813 | 0.0540 | 1.370 | 0.0580 | 1.470 | 12.20 | 5.0 |
| 22 | Solid | 0.0253 | 0.643 | 0.0460 | 1.170 | 0.0500 | 1.270 | 19.70 | 3.4 |
| 24 | Solid | 0.0201 | 0.511 | 0.0400 | 1.020 | 0.0440 | 1.120 | 31.00 | 2.4 |
| 26 | Solid | 0.0159 | 0.404 | 0.0290 | 0.737 | 0.0330 | 0.838 | 50.40 | 1.4 |
| 28 | Solid | 0.0126 | 0.320 | 0.0240 | 0.610 | 0.0280 | 0.711 | 79.40 | 1.0 |
| 30 | Solid | 0.0100 | 0.254 | 0.0210 | 0.533 | 0.0240 | 0.610 | 126.00 | 0.7 |
